Are there any System Prerequisites?
- You must have either Pro edition (with API option) or Enterprise Edition
- In order to use the screen popping feature you are required to have My Domain, Departments, setup the Utility Bar and assign users to Call Centre within Salesforce.
- Popup will only work with Lightning apps only; Classic or Managed Apps will not allow the popup.
- If you have “required” fields selected within an Object (IE Lead, Account), it must be a Page Layout requirement, not a single Field requirement. If it is Field setup Mediahawk cannot create new items within the Object (IE Lead, Account)
- You must have at least 9 Custom fields available for Mediahawk to install the required fields.
How do I install the Mediahawk App within Salesforce?
Login to your Salesforce account and then paste the following Web URL into the browser bar

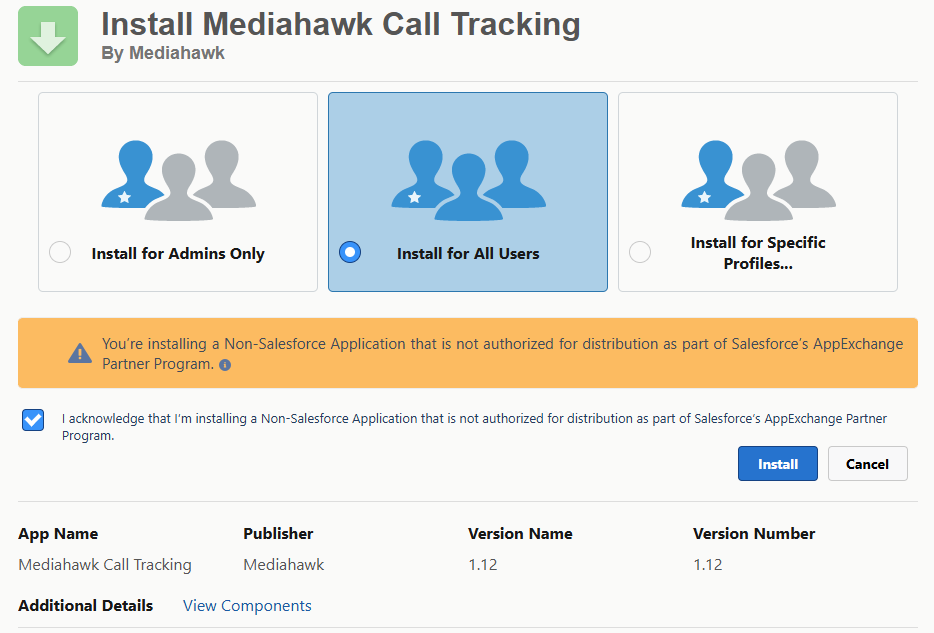

You will be presented with an Install / upgrade Screen. Select the most appropriate install method (in this example we have selected Install for all users), tick the acknowledgment of Non- Salesforce Application then click Install / upgrade.
You will continue to see this screen until the installation is complete.

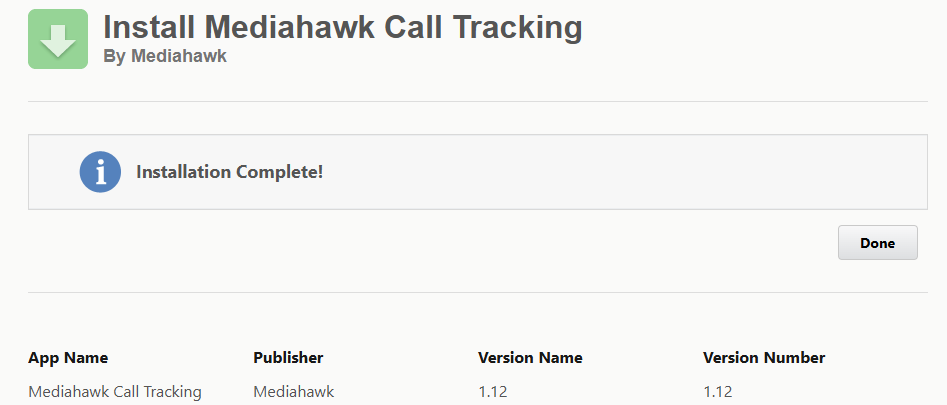

Once complete you will be presented with this screen. Click Done
This will then take you to the Installed Packages screen below where you will see the Mediahawk Call Tracking package has been installed.
If you are using the screen popping function you will now need to setup the My Domain, Call Centre Users, Assign Departments to Users and Utility Bar. If not proceed to How do I set up the integration in Mediahawk?
Setting up My Domain in Salesforce.
Select the Settings Icon and Setup in the top right
This will open another window.
In the Quick Search bar enter My Domain, this will apply a filter as below.
Select MY Domain, you will be presented with this screen. (If not already setup by your Administrator)
Step 1
Please Note:
If not already setup enter a Domain name (in the example below we have used Mediahawk) please verify with your system Administrator before proceeding!
Press Check Availability and if available register Domain.
You will see this screen and an email will be sent to the registered email address, once email has been received refresh (F5) this page.
Step 2
Click Log in
This will open a new window with Step 3
Step 3
Click Deploy to Users,
Step 4 is completion screen
Setting up Call Centre Users in Salesforce?
In order to use the Screen Popping feature you are required to assign users to the Call Center Setup.
Select the Setup Icon in the Top right of the screen
Use the Quickfind /Search Section in the left column and type Call Centers and then select Call Centers from the Filtered View
Click Continue
You will then be presented with this screen.
Please Note:
If you have upgraded to Lightning you will see Mediahawk Call Center and Mediahawk Lightning Call Center. If you have previously assigned users to an older package you will need to delete them from this Call Center before proceeding.
Select the Mediahawk Lightning Call Center setting
You will then be presented with this screen. Do not make any changes to the General Information Settings.
Select Manage Call Center Users
Select Add More Users
In the Next Window, you can either search for users in the grid or press Find to view all registered users.
If you use the find option, then simply tick the users you would like to assign to receive the screen popping and click Add to Call Center
The next window will show the confirmed list of users who will receive the screen popping.
Assign Departments to Users?
In order to use the Screen Popping feature you are required to assign each user to a department.
If you only want a single screen popping session across the business then assign a single department to all users
Setting up multiple departments allows the system to direct specific Mediahawk Service numbers to a group of individuals (departments) and allow the screen popping to only be active for that set of users (assigned Department).
Select the Setup Icon in the Top right of the screen
Use the Quickfind /Search Section in the left column and type Users and then select Users from the filtered view
You will be presented with a List of users that are registered on Salesforce, to edit a user simply select edit against the user’s name.
You then assign a Department to the user, in this example below we have setup a Client Services Department.
Please be aware that the departments are case sensitive text fields and must be the same for all the users who want to receive the same screen popping.
Once complete click Save
Note: This Change must be done for all users who you wish to receive screen popping.
Creating the utility bar
Select the Setup Icon in the Top right of the screen
In the Quick Search bar enter App Manager this will apply a filter as below. Then select App Manager from the filtered view.
Note: Please note: Popup will only work with Lightning apps only; Classic or Managed Apps will not allow the popup.
Select the Salesforce App you wish to setup the utility bar on. In this example we are using Sales APP
Select the drop down ICON on the right of the APP and click Edit.
This opens the window below. Select Utility Bar on the left and click Add Utility Item
Select Custom – Managed and then MediahawkPhoneComponent
You will see the screen below.
At this stage you must change the Label to Mediahawk (Upper case M)
You can change the Icon (default is fallback) in our example we have chosen phone_portrait
You can also change the panel size and width if desired.
Ensure Start Automatically is ticked
Click Save
Salesforce Setup Checklist
Have you installed the Mediahawk APP within Salesforce?
If you are using the screen popping facility have you:
Setup My Domain?
Created Call Centre and assigned Users?
Assigned Departments to Users?
Setup Utility Bar?
Once you have completed these activities select the Page you have setup the popup on.
You should be presented with the Mediahawk Popup on the utility bar at the bottom
You now need to setup the Integration in Mediahawk below.
How do I set up the integration in Mediahawk?
Login to your Mediahawk account.
On the Admin Page - Select the Salesforce Setup and click Connect.
You then have the choice to connect a Live or Sandbox installation
Click Connect to get started.
You will be redirected to the Salesforce website and asked to log in to Salesforce account, you will then be asked to allow Mediahawk access to your Salesforce organizations data. Click Allow.
Once you have allowed access you will be redirected back to the Mediahawk Salesforce Settings page.
Click Create new settings
You will now be able to create a new setup or to clone an existing setup and settings (In this example we will create a new setup)
You will then be presented with this screen.
Salesforce Setup Page
Description
First set the description for the setting, this can be setup with any name, in the example we have used Sales.
Screen Popping
Screen Popping allows you to instantly see the caller details when an assigned Mediahawk Service number is called. The screens below will “pop up” within your salesforce application.
Incoming calls will only show in Salesforce for users belonging to the selected department. You must have departments set up in your Salesforce settings in order to use the Mediahawk screen popping feature. Please see examples below of what the screen popping could look like:
Any Salesforce records (Lead, Contact or Account) created through the screen popping feature will update the Call Task / Activity with any additional call/visitor data automatically by Mediahawk on an hourly basis.
Departments
When you connect with Salesforce for the first time, Mediahawk will automatically retrieve a list of the Departments you have assigned to users within your Salesforce Account.
Select the department(s) you want to receive screen popping within this setup.
If you update your Departments within the Salesforce system and want these to be available to receive Mediahawk data you will need to refresh these fields in Mediahawk. This is a simple process of pressing the Refresh Departments at the bottom of the page.
Export Calls
You can also switch on our export calls feature. Once this is enabled, Mediahawk automatically matches existing Salesforce records (Lead, Contact or Account) with calls received and sends the details directly Call Task / Activity on the records that are matched in Salesforce every hour.
Select Numbers.
You now need to select the numbers that you would like to send to this instance of Salesforce. You can select All Static, All Dynamic or a Custom selection
Click Save.
Once saved Mediahawk will create the following standard custom fields in your Salesforce object layouts for Account, Lead, Contact and Activity
When Complete you will see this output
Click Finish Setup
Log Back into your Salesforce Account
Once you have setup the Mediahawk Integration, you will now see that the Popup screen (if enabled) is now visible with no errors.
Object Field Security
Once the Mediahawk fields have been created in the Objects Layout in Saleforce for Account, Contact, Lead and Activity, you now need to apply the Field level Security policies for these to be visible.
Select the Setup Icon in the Top right of the screen
In the Quick Search bar enter Object Manager this will apply a filter as below.
Then select Object Manager.
Now under Label select Account
Then select Fields & Relationships
Find all the Mediahawk Field that have been created all will be prefixed with Mediahawk
Select each Mediahawk field to edit the properties. Then select Set Field-Level Security
You now need to set the Visible / Read only permissions as per your company setup
Click Save
Note: You must now complete this action for all Mediahawk Fields in all Layouts (Account, Lead, Contact and Activity that you with to use. (Please ensure Activity is always completed as this is used in the Call data field)
Object Layout
In order to see the data in the Call Activity you now need to add the Mediahawk Fields in the Layout. Instances of Salesforce Vary depending on the setup but we have provided a quick guide how to complete this in our FAQ section.
Advanced Settings
Call matching settings
In this section you can define how you want Mediahawk to export calls to Salesforce.
This will only apply if you turned the Export calls option on. (Above)
You will then use the Priority List to tell Mediahawk which record types we should match first.
Simply use Up and Down buttons to reorder priority list, you can also choose whether to log the call or create a new record if we find a match:
As an example using the settings on the above screenshot, the workflow diagram below shows how data from a call from 0123456789 would be exported.
Field mapping settings
NOTE: We can only update fields contacined within the Call Activity Section, in Leads, Contacts and Account.
When you connect with Salesforce for the first time, Mediahawk will automatically retrieve a list of available fields within your Salesforce account for all 3 sections above, Account, Contact and Lead. These are then added to the Salesforce Field selector within Field Mapping Settings.
Field mapping allows you to match Mediahawk and Salesforce fields to populate the correct data.
To map your fields first select the section you would like to update. Account, Contact or Lead and then select the Mediahawk field required and the corresponding Salesforce field you would like this data to populate in your Salesforce record.
If you update your fields within the Salesforce system and want these to be available to receive Mediahawk data you will need to refresh these fields in Mediahawk. This is a simple process of pressing the Refresh Salesforce Fields at the bottom of the page.
Source Settings
Mediahawk will send Source/Medium based on the standard Mediahawk reporting. However, if you have custom Lead Sources setup in Salesforce these can be used to overwrite the Mediahawk Sources using the mapping below
NOTE: Please see our FAQ's for popular answers to questions HERE
